Tech Talk
Build and Dimensions
Build and Dimensions
Build and Dimensions

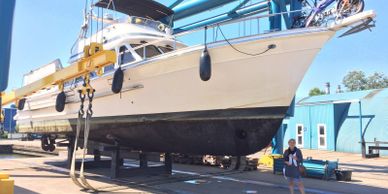

- Model: AMS TRAWLER 480
- Type: motor yacht
- LOA 16,80 m
- LWL 13,80 m
- Beam 4,73 m
- Draft 1,15 m
- Air draft 4,00 m
- Headroom 2,00 m
- Year built 1993
- Builder AMS Marina Yachts
- Country Taiwan
- Displacement 18 ton
- CE norm B
- GRP Hull colour white
- Hull shape deep-V
- Superstructure and deck GRP
- Teak deck finish
- Aluminium window frames
- RVS portholes tempered glass
- Radar arch collapsible
- Wheel steering hydraulic
- Helm positions 2 (inside and flydeck)
Propulsion
Build and Dimensions
Build and Dimensions

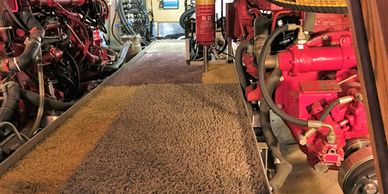

- Two engines
- Iveco Aifo 8060 SRM33
- 330 Hp each (245 Kw each)
- Fuel diesel
- Year installed 2003
- Maximum speed 18 Kn
- Engine hours ca. 1085
- Two RVS shaft
- Hydraulic Gearbox
- Engine/gearbox Kobelt computer controlled (saloon and flydeck)
- Bowthruster hydraulic
- Sternthruster hydraulic
- Fixed propellers
- Shaft seals Sure FSK water (2017)
- Homo kinetic shaft couplings Aquadrive 2x 350hp
Energy
Build and Dimensions

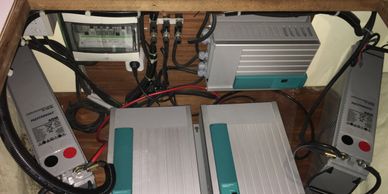

- 12 V system, 3x125 AH batteries, Mastervolt Chargemaster 12/50.
- 24 V system, 2x150AH Mastervolt AGM batteries, Mastervolt Mass 24/25, Mastervolt Mass Sine 24/1500 en 24/2500
- Shore power 230VAC
- Generator Mase 14,4 kW silent watercooled
- autoswitching between shore, generator and invertors using 2 Victron Filax by pass switches
- Total utility battery energy 675 AH
- engine start batteries 2 x 120AH, charger Mastervolt 6A
- Generator start battery 100AH, charger Mastervolt 6 A
- Total starter battery energy 320AH
Navigation
- Simrad plotters 2x NSE 12, 1 NSS 8
- electronic compass and gps Simrad GS25
- Autopilot Robertson AP20
- Dept sensor and fish finder Airmar
- Radar Simrad Broadband
- AIS class B
- NMEA 2000 network
- NMEA 2000 WiFi bridge
- NMEA 2000 PC bridge
- Radar and AIS overlay
- IS15 wind 2x
- IS15 log 2x
- IS15 compass 2x
- IS15 depth 2x
- Magnetic Compass
- Navtex
Communication
Communication
- VHF Simrad RS87 mmsi

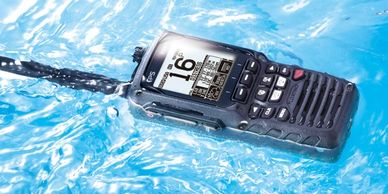

- VHF Portable ICOM IC-M910 mmsi, gps
- WAN LTE 4G
- WiFi
- Ethernet LAN
- LAN 2 NMEA 2000 bridge
- NAVTex
Comfort
Communication
front bathroom
- separate shower
- thermostatic tap
- Washing machine
- Jabsco hand toilet
- 2 doors
Aft bathroom
- separate shower
- thermostatic tap
- electrical toilet
- 2 doors
Central heating
- Kabola 14kW and engines
- Hot water Kabola
Tanks
Deck equipment
Deck equipment
- Fuel tanks 3x steel 500 litre (1500 L)
- Fuel Level indicators 3 VDO
- Water tanks 2 total 1500 L
- Water Level indicator VDO
- Water level alarm
- Blackwater tank 2 x 200 litre aft and front toilet
- blackwater Level 2 x VDO
Deck equipment
Deck equipment
Deck equipment
Davit
- electrical
- remote control
- 950 Kg
Gangway
- Besensoni
- Hydraulic
Tender
Deck equipment
Tender
Aquaparx 360 RIB
- Outboard engine 15 Hp
- Electrical start
- 12vdc plug
- fenders
- pump
- battery 12 v 60Ah
- fire extinguisher
- 4 live jackets
Cabins
Cabins
Tender
Master cabin
- double bed
- led tv
- bathroom en suite
- 4 portholes
- large hatch
- led lighting
front cabin
- double bed
- bathroom en suite
- two portholes
- large hatch
guest cabin
- double bed
- single bed
Saloon
Cabins
Saloon
Salon
- fridge
- Smart Led TV
- Connected thermostat
- Connected smoke and CO2 sensor
- Connected led RGB lighting
- Connected Amp
- Bose speaker system
- Bose subwoofer
Galley
Cabins
Saloon
Galley
- Bosch oven and magnetron
- Bosch 4 ceramic cooking
- fridge
- freezer
- cutlery drawer
- herbs drawer
